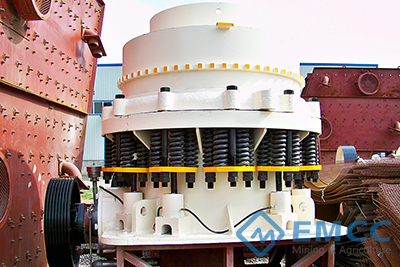

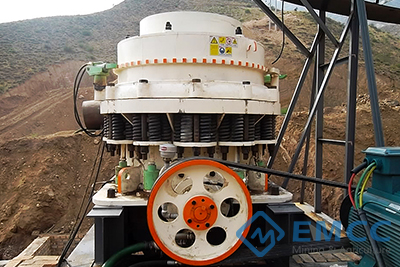

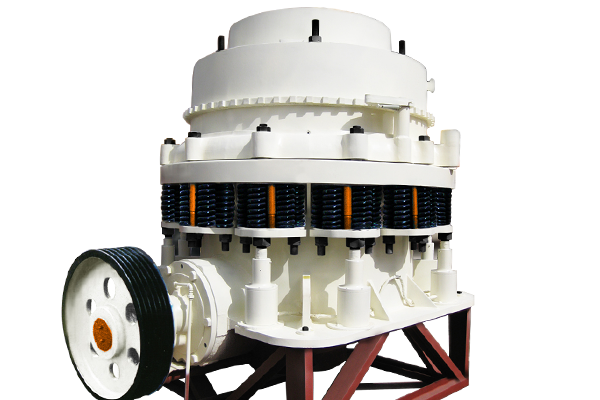

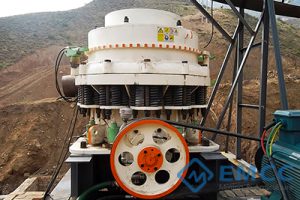

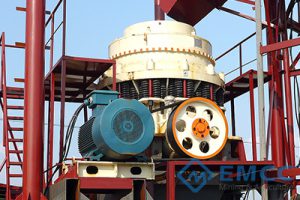

Symons Cone Crusher
DEVICE DETAILS:
Symons cone crusher is a improved machine of PY series cone crusher. It’s applied in above medium hardness all kinds of ore and rock. Compared with PY series cone crusher, it has reliable structure, high efficiency, easy adjustment, low cost and many other advanrages. It’s applied in metallurgy, construction, white fuel, traffic, chemical engineering, construction material to process above medium hardness all kinds of ore and rock, it’s the best choice for large scale stone plant and ore crushing.
TECHNICAL PARAMETERS:
Standard parameters：
| Model | 3Ft-B | 4.25FT-B | 5.5FT-B | 7FT-B | |||||||||
| Specs | 900mm | 1295mm | 1650mm | 2134mm | |||||||||
| cavity shape | narrow | medium | narrow | narrow | medium | narrow | narrow | medium | narrow | narrow | medium | narrow | |
| TheSmallest Discharge (mm) | 9 | 13 | 25 | 13 | 16 | 25 | 16 | 22 | 38 | 19 | 25 | 38 | |
| Corresponding FeedingSize |
B(close) (mm) | 83 | 159 | 163 | 109 | 188 | 238 | 188 | 213 | 331 | 253 | 303 | 425 |
| B(open) (mm) | 102 | 175 | 178 | 137 | 210 | 259 | 209 | 241 | 368 | 278 | 334 | 460 | |
| Capacity(t/h) | 45-91 | 50-120 | 59-163 | 109-181 | 132-253 | 172-349 | 181-327 | 258-417 | 299-635 | 381-726 | 608-998 | 789-1270 | |
| Weight (t) | 15 | 26.5 | 43.5 | 67.3 | |||||||||
| Motor P ower (KW) | 6P-75 | 6P-160 | 6P-250 | 6P-350 | |||||||||
| Overall Dimension(mm) | 2865×2000×2190 | 3300×2500×2940 | 4105×3280×3505 | 5110×4270×4350 | |||||||||
Short head parameters：
| Model | 3FT-D | 4.25FT-D | 5.5FT-D | 7FT-D | |||||||||
| Specs | 900mm | 1295mm | 1650mm | 2134mm | |||||||||
| cavity shape | narrow | medium | narrow | narrow | medium | narrow | narrow | medium | narrow | narrow | medium | narrow | |
| TheSmallest Discharge (mm) | 3 | 3 | 6 | 3 | 6 | 16 | 5 | 6 | 13 | 5 | 10 | 16 | |
| Corresponding FeedingSize |
D(close)(mm) | 13 | 33 | 51 | 19 | 54 | 98 | 35 | 54 | 117 | 51 | 95 | 152 |
| D(open)(mm) | |||||||||||||
| 40 | 60 | 76 | 64 | 89 | 133 | 70 | 89 | 133 | 105 | 133 | 203 | ||
| Capacity(t/h) | 27-90 | 30-100 | 31-110 | 36-163 | 82-163 | 109-227 | 90-209 | 136-281 | 190-336 | 190-408 | 354-508 | 454-599 | |
| Weight (t) | 15 | 26.5 | 43.5 | 67.3 | |||||||||
| Motor P ower (KW) | 6P-75 | 6P-160 | 6P-250 | 6P-350 | |||||||||
| Overall Dimension(mm) | 2865×2000×2190 | 3300×2500×2940 | 4105×3280×3505 | 5110×4270×4350 | |||||||||
ADVANTAGE:
Unique Cavity Design
Lamination crushing has a great performance on high hardness material even and good final product shape high capacity.
Dry Oil Seal
Unique dry oil seal can protect machine from dust reliable seal Replacement cycle and service life of parts are lengthened.
Overload Protection
Spring system is overload protection to protect machine from metel damage.
Rolling Mortar Wall
More material is allowed to be taken into machine and discharge volume is increased.
WORK PRINCIPLE:
When working the motor will drive the eccentric shaft to move through the V-beltbig pulley transmission shaft small bevel gear big bevel gear the cone crusher’s eccentric shaft central line will revolve wit the eccentric shaft sleeve. Then the concave will be close then far away from the mantle surface then the material will be circled around the fixed and mobile cone impacted pressed and then curved. After many times of repetition material would be crushed into the desired size then discharged from the lower part.
