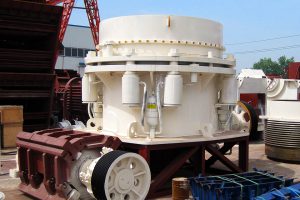

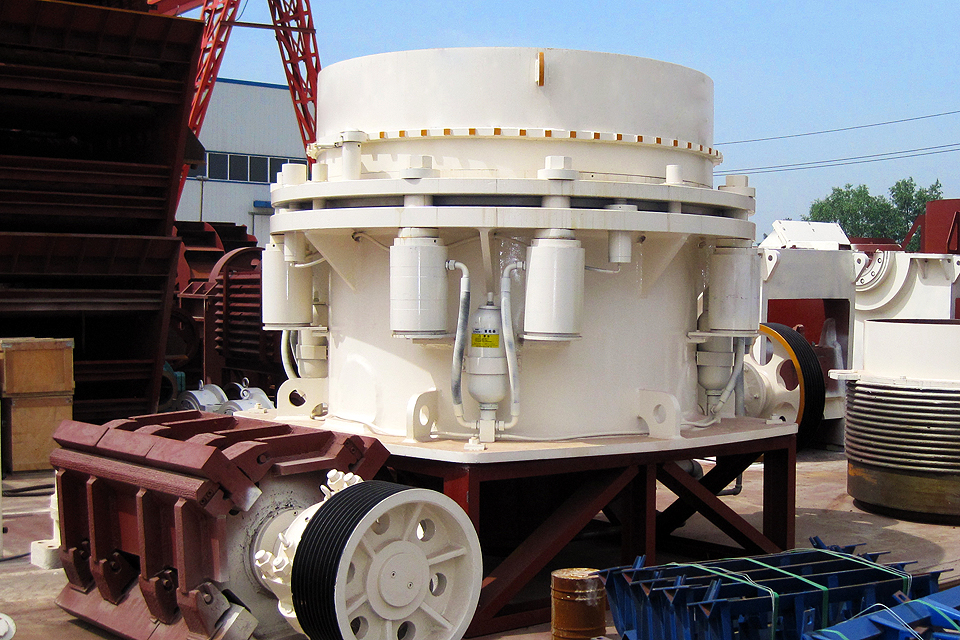

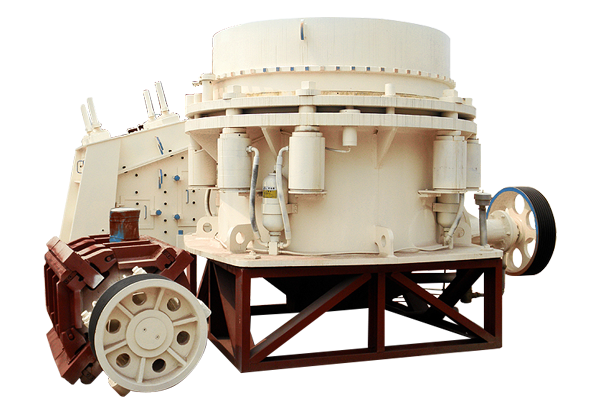

Multi-Cylinder Hydraulic Cone Crusher

DEVICE DETAILS:

The multi-cylinder is the latest generation product which can replace the spring cone crusher and the general hydraulic cone crusher in the mine construction industry today,which is the most ideal equipment for stone and mining crushing.Its unique internal structure design and the application of wear resistant material can crush hard rock such as basalt, at the same time can crush various hard ore minerals, widely used in stone production, artificial sand, ore dressing production etc.

TECHNICAL PARAMETERS:

Model	Max feeding size(mm)	Discharge range(mm)	Motor power（kw)	Capacity(t/h)-open circuit,closed dischange(mm)
				9	13	16	19	22	26	32	38	51	63
HPC160C	160	22-32	75-90	40-70	60-85	80-100	90-110	100-120	110-130	140-160
HPC160M	130	13-26
HPC160F	50	9-19
HPC180C	180	22-32	132-160	60-90	80-110	100-135	120-155	140-185	160-195	180-215
HPC180M	140	13-32
HPC180F	60	9-22
HPC220C	240	26-51	160-220	70-90	90-110	115-140	130-160	150-190	200-250	250-300	300-350	350-420
HPC220M	150	16-38
HPC220F	80	9-22
HPC315C	330	32-63	315-375		100-130	130-180	170-205	210-255	250-295	300-340	350-390	400-480	500-600

WORK PRINCIPLE:

While working,the electric motor drives the eccentric sleeve to rotate through the V-belt, transmission shaft and bevel gear pair. With the driving of eccentric sleeve the dynamic cone makes pendulum movement making the dynamic cone and static cone approach and leave now and then. The material in the crushing chamber is crushed due to continuous impact and squeezing. Finally the crushed material is discharged from the bottom.
