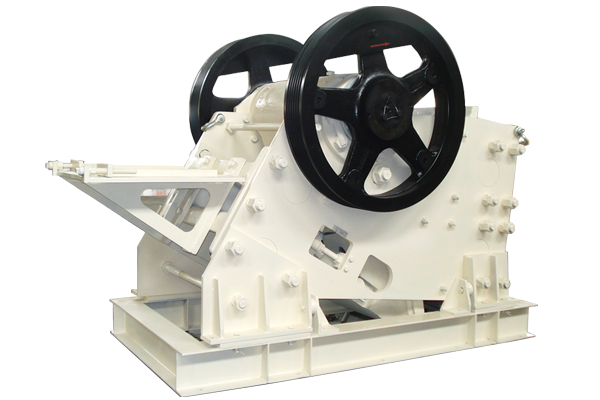

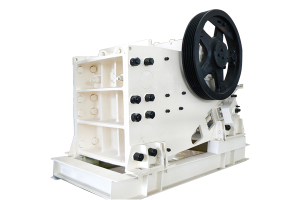

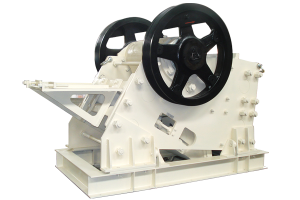

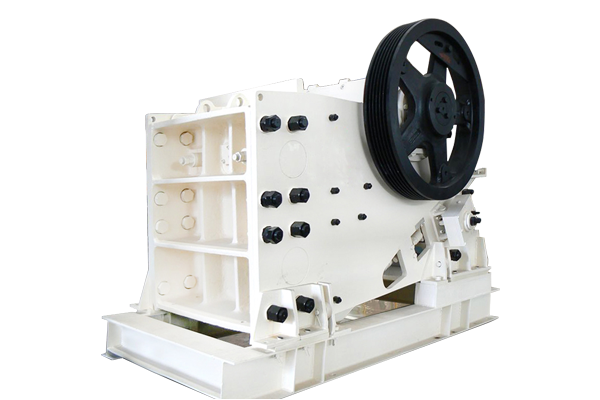

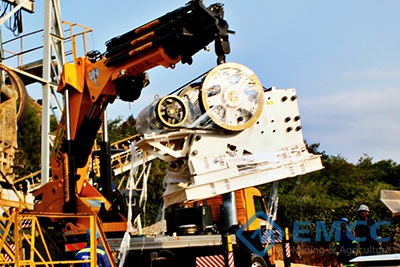

Modular Series Jaw Crusher
We offer complete stationary crushing production line for designs, installation and maintenance with long-term technical support and fast response.
Modular Series Jaw Crusher
DEVICE DETAILS:
Modular Series Jaw Crusher is the best choice for hard rock crushing process, fission structure makes installing and debugging work easier, it can shows its superiority in the pit. High speed crushing technique’s application makes high capacity and strong power and big crushing ratio. Reasonable shock absorption protects machine’s foundation.
TECHNICAL PARAMETERS:
| Model | Feed opening (mm) |
Feeding size (mm) |
Discharge opening (mm) |
Speed of eccentric shaft (rpm) |
Power (kW) | Capacity (t/h) | Dimension (LxWxH) | Weight (t) |
| C510×800 | 510×800 | 430 | 40-125 | 320 | 60/75 | 50-129 | 2480×1460×1750 | 8.3 |
| C670×1000 | 670×1000 | 530 | 60-200 | 320 | 90/110 | 75-168 | 3090×1642×2300 | 15 |
| C750×1130 | 750×1130 | 630 | 70-200 | 300 | 90/110 | 150-350 | 3228×1990×2500 | 22 |
| C950×1250 | 950×1250 | 800 | 100-250 | 240 | 110/132 | 200-500 | 4184×2321×3245 | 39 |
| C250×1200 | 250×1200 | 210 | 15-60 | 360 | 37 | 22-72 | 2108×1940×1680 | 6.9 |
ADVANTAGE:
Toothed Plate
High manganese steel material and metallography detection make close connection of moving jaw and connecting plate efficiency is increased.
Feed Channel
Feed channel leads material to crushing cavity and no need to remove it when changing toothed plate.
Flywheel and V-belt
Flywheel and V-belt shield besel of besel could be the way to observe the situation of Flywheel and belt pulley.
Modular Structure
Free welding rack design lengthens machine’s service life. Parts of machine could be splited transportation and installation costs can be reduced.
WORK PRINCIPLE:
Motor drives belt and belt pulley to make moving jaw swing to every direction when moving jaw pushes dynamic jaw plate moving toward fixed jaw plate material will be crushed; when moving jaw moves backwards crushed material will be discharged from discharge gate. With seasonal crushing and discharging volume production could be achieved.
