Mobile Telescopic Belt Conveyor
We offer complete mobile crushing station for designs, installation and maintenance with long-term technical support and fast response.
Mobile Telescopic Belt Conveyor
DEVICE DETAILS:

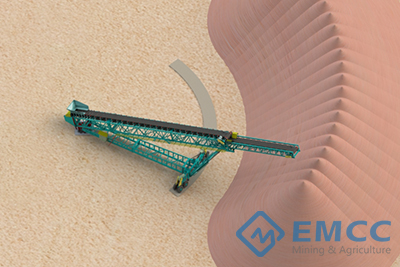

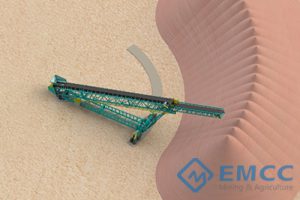

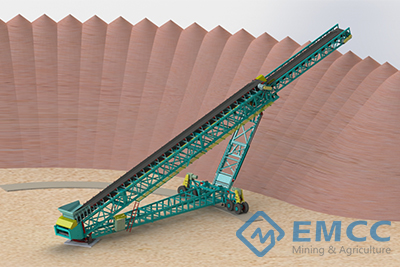

Mobile Telescopic Belt Conveyor is made by Shanghai Exceed Industry Co., Ltd. It is a new machine for material handling. The telestack conveyor is fully programmable to build partially or fully desegregated stockpiles, in-line stockpiles, precision bin filling and barge loading. The telestack conveyors can make full use of the terrain, it can makes reasonable piles. Available capacity from 300T/H to 1000T/H, available in lengths from 20 meters to 40 meters. They are road portable and fully customizable.
TECHNICAL PARAMETERS:
| Mobile Telestack conveyor | ||||||
| Model | Main conveyor |
Extention conveyor |
Length (M) |
Power (KW) |
Capacity (T/H) |
Weight (T) |
| TB500 | 500mm | 500mm | 25-40 | 7.5X2 | 100T/H | 20 |
| TB650 | 650mm | 650mm | 25-40 | 11X2 | 200T/H | 24 |
| TB800 | 800mm | 800mm | 25-40 | 15X2 | 400T/H | 28 |
| TB1000 | 1000mm | 1000mm | 25-40 | 18.5X2 | 600T/H | 32 |
| TB1200 | 1200mm | 1200mm | 25-40 | 22X2 | 800T/H | 36 |
ADVANTAGE:
Mobile Telestack conveyors have numerous advantages, here are just a few:
Improves quality of product by eliminating segregation and reducing degradation
Meet state specifications consistently
Reduce operating costs by eliminating the loader/dozer/truck stockpiling method
Increase stockpile volume by 30%, puts more inventory on the same piece of real estate
Highly portable-convert from transport to stockpile mode in minutes.
WORK PRINCIPLE:
Mobile Telestack conveyor is made by Shanghai Exceed Industry Co., Ltd. It is a new machine for material handling. The telestack conveyor is fully programmable to build partially or fully desegregated stockpiles, in-line stockpiles, precision bin filling and barge loading.The telestack conveyors can make full use of the terrain, it can makes reasonable piles. Available capacity from 300T/H to 1000T/H, available in lengths from 20 meters to 40 meters. They are road portable and fully customizable.
