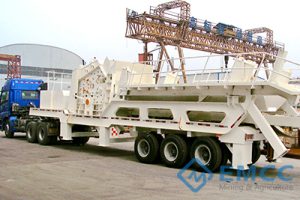

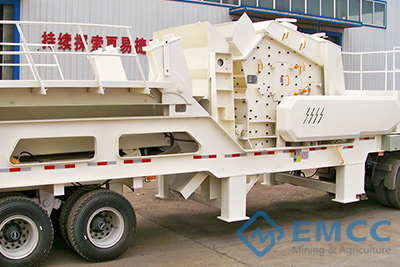

Impact Crusher Series Mobile Crusher

DEVICE DETAILS:

he impact crusher series mobile crusher machine is suitable for construction waste crushing, mobile crushing operations in mining area, also widely used in water and electricity, highway, artificial aggregate, ore crushing and other operations. It is a new type of rock crushing equipment, which can greatly expand the concept of coarse and fine crushing areas. Its purpose of design idea stands in customers’ position,putting eliminating obstacles about the limitation of crushing space and environmental pollution as the primary solution. Truly provide customers with simple, efficient and cost-effective operation hardware facilities of projects.

TECHNICAL PARAMETERS:

Impact Crusher & Vibrating Screen Series Mobile Crushing plant

Model M3Y1548F1010 M3Y1848F1210 M3Y1860F1214 MC3Y2160F1315
Impact Crusher Model PF1010 PF1210 PF1214 PF1315
Circular Vibrating Screen Model 3YA1548 3YA1848 3YA1860 3YA2160
Belt conveyor specification 500*7m 650*7m 650*8m 800*8m
Axes Count 2 2 3 3
Weight (t) 32 36 42 54
Dimensions(mm) 11500*2450*3950 13800*2450*3950 14000*2450*4280 14500*2950*4400

Impact Crusher & Vibrating Feeder Series Mobile Crushing plant

Model MZ3090F1010 MZ3090F1210 MZ3896F1214 MZ3896F1315
Impact Crusher Model PF1010 PF1210 PF1214 PF1315
Feeder Model ZSW300*90 ZSW300*90 ZSW380*96 ZSW110*420
Circular Vibrating Screen specification none none none none
Belt conveyor specification 500*7m 650*7m 650*8m 800*8m
Axes Count 2 2 2 3
Weight (t) 27 32 40 47
Dimensions (mm) 9900*2450*4100 9900*2450*4100 9900*2900*4100 9900*2450*4500

ADVANTAGE:

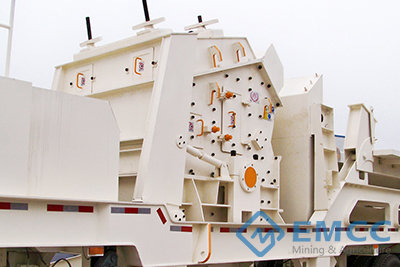

High Quality Impact Crusher
Reinforced impact crusher double and three cavity impact crushers all can be freely set from coarse crushing to fine crushing in accordance with the different processing requirements.

Self-load Belt Conveyor
Retractable self-load belt conveyor.

High Quality Thick Steel frame Structure
High quality thick steel frame structure makes mobile crushing plant run smoothly extending equipment’s service life.

Vehicle-mounted Electronic Control Configuration
Vehicle-mounted electronic control configuration space-saving easy manipulation.
