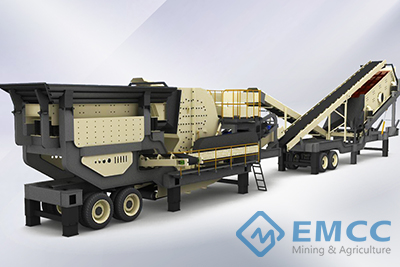

Construction Waste Crushing Station
We offer complete mobile crushing station for designs, installation and maintenance with long-term technical support and fast response.
Construction Waste Crushing Station
DEVICE DETAILS:
The mobile construction waste crushing plant uses the advanced construction waste disposal technology and is developed for processing construction waste, industrial waste, coal cinder, coal rock, slag, fly ash, and other nonmetallic solid wastes. After the application process of these solid waste treatments, mobile crushing plant can produce a variety of new building materials which meet the quality test specification. According to the different device configuration, the effective utilization of construction waste can reach 80-100%. Using this device doesn’t cause secondary pollution so this can achieve ideal enviromentaleffects of near-zero pollution and zero emissions.
TECHNICAL PARAMETERS:
| Model | YLS1860PD650 | YLS2160PD650 |
| Vibrating Feeder | —— | —— |
| Eddy Impact Crusher Models | —— | —— |
| Permanent Magnetic Seprator | —— | —— |
| Vibrating Screen | 2YA1860 | 3YA2160 |
| Quantity of Belt Conveyor | 3 | 5 |
| Number of Axles | 2 | 2 |
| Weight (T) | 28 | 37 |
| Transport Dimensions (L*W*H) (mm) | 14200*2550*4350 | 16000*3160*4760 |
ADVANTAGE:
High Quality Thick Steel frame Structure
High quality thick steel frame structure makes mobile crushing plant run smoothly extending equipment’s service life.
Eddy Impact Crusher – Special Crusher for Construction Waste
Professional construction waste crushing equipment sets coarse and fine crushing together bigger feeding granularitymore input material and greater capacity.
Truck Mounted Separators
The mobile crushing station is configured with a dedicated separator for removing iron materials to improve the quality of finished material products extended equipment life.
Scalable Regulation Stand
The stent body can be easily retractable according to ground level to ensure stable operation of the vehicle when running thus prolonging equipment life.
