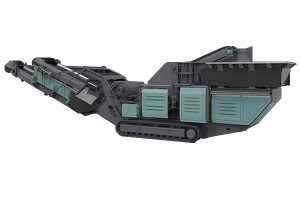

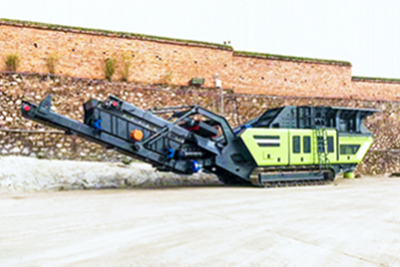

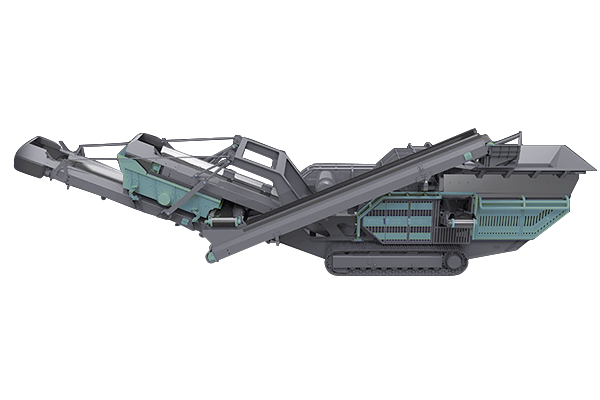

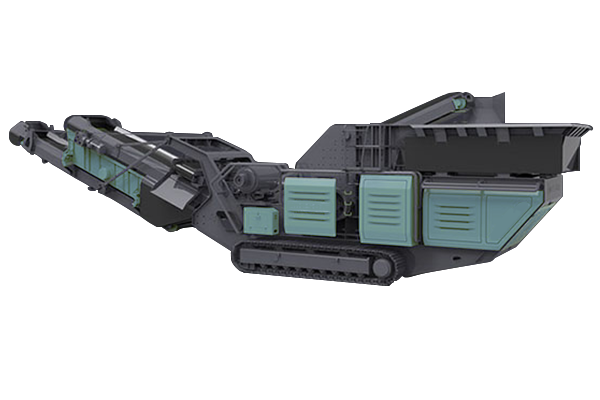

Crawler-type Impact Crusher Mobile Crushing Station
We offer complete mobile crushing station for designs, installation and maintenance with long-term technical support and fast response.
Crawler-type Impact Crusher Mobile Crushing Station
DEVICE DETAILS:
Widely applicated in mining, water conservancy, transportation, railway, cement, construction materials, metallurgy, chemical industry, electric power, construction and other industries for coarse and medium Crushing of hard materials under 150MPa. MC-I series Impact crusher has the advantages of large output, high Crushing efficiency, low energy consumption, low wearing, high reliability and good granularity shape, etc.
ADVANTAGE:
1、Strong Crushing ability and low energy consumption；
2、 Compact structure, small space consumption；
3、wide applications in both coarse and medium aggregates；
4、The crushed stone has good granularity and the output is large；
5、The wear-resistant parts are fixed with screws, which is easy to assemble and disassemble；
6、Easy to operate and maintain.
WORK PRINCIPLE:
As the material falls into the hammer working zone from the hopper, it is impacted by the high-speed rotating hammer, and then it is thrown to the unique impact plate installed above the rotor and back to hammer action zone repeatedly. So the material is repeatedly crushed in the Crushing cavity from large to particular particle size and discharged from the discharge exit at the buttom.
