Permanent Magnet Separators
DEVICE DETAILS:

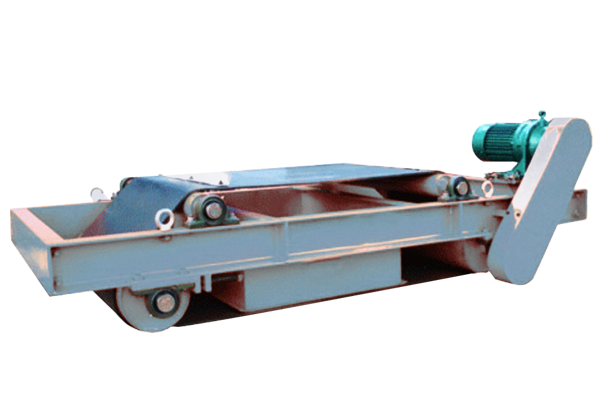

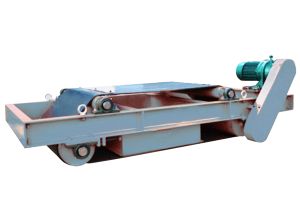

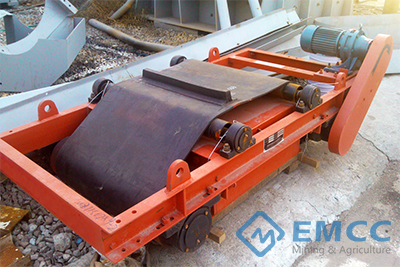

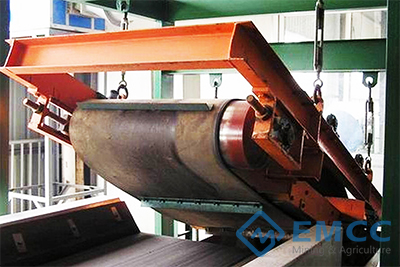

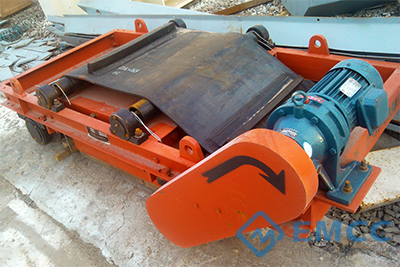

Self lighting type permanent magnet separators is constituted by Nd-fe-b magnetic core, de-iron belt, shell frame, roller and other parts, matching up with many kinds of conveyor, it is applied for removing ferromagnetic substance from non-magnetic materials, permanent magnet separators is set in the de-iron production line.
TECHNICAL PARAMETERS:
| Parameter | Adaptive Bandwidth (mm) | Rated Hanging High(mm) | Material Thickness (≤mm) | Magnetic Intensity (≥mt) | Driving Power (≤kw) | Speed (≤m/s) | Weight(kg) | The shape size（mm） | ||
| RCYD(C)-5 | 500 | 150 | 100 | 60 | 1.5 | 4.5 | 750 | 1900 | 935 | 735 |
| RCYD(C)-6 | 600/650 | 180 | 130 | 60 | 1.5 | 4.5 | 920 | 2050 | 1030 | 780 |
| RCYD(C)-6.5 | 650 | 200 | 150 | 70 | 1.5 | 4.5 | 1200 | 2165 | 1080 | 780 |
| RCYD(C)-8 | 800 | 250 | 200 | 70 | 2.2 | 4.5 | 1400 | 2350 | 1280 | 796 |
| RCYD(C)-10 | 1000 | 300 | 250 | 70 | 3 | 4.5 | 2120 | 2660 | 1550 | 920 |
| RCYD(C)-12 | 1200 | 350 | 300 | 70 | 4 | 4.5 | 3350 | 2860 | 1720 | 1010 |
| RCYD(C)-14 | 1400 | 400 | 350 | 70 | 4 | 4.5 | 4450 | 3225 | 1980 | 1050 |
| RCYD(C)-16 | 1600 | 450 | 400 | 70 | 5.5 | 4.5 | 6200 | 3350 | 2160 | 1180 |
| RCYD(C)-18 | 1800 | 500 | 450 | 80 | 5.5 | 4.5 | 8100 | 3580 | 2450 | 1210 |
| RCYD(C)-20 | 2000 | 550 | 500 | 80 | 7.5 | 4.5 | 9700 | 3800 | 2700 | 1300 |
ADVANTAGE:
High Efficiency Neodymium Iron BoronHigh efficiency neodymium iron boron with strong magnetism and it’s hard to be demagnetized.Drum-shaped StructureRollers in both sides adopts drum shape structure possessing rectifying deviation function.Excellent LeakproofnessGood leakproofness makes machine can adapt all kinds of severe environment condition.Diversification of Control MethodsThe control section could be linked with belt conveyor manual control and centralized control two methods are available.
WORK PRINCIPLE:
When the material flows through the separator the ferromagnetic materials are adsorbed to the stainless steel pipe wall and gradually move with the permanent magnet and slide to the tap hole thus realize the material separation. At the tap hole the permanent magnet move away along the cycling direction the ferromagnetic material that loses magnetic attraction discharge from the tap hole under the gravity force therefore achieve the automatic removal of iron materials.
