New Type Organic Fertilizer Granulator
We offer complete organic or compound fertilizer production line for designs, installation and maintenance with long-term technical support and fast response.

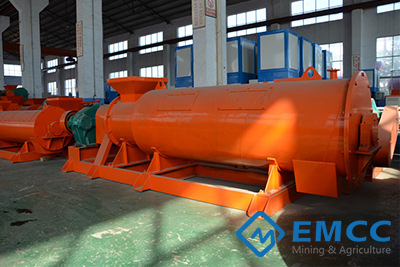

New Type Organic Fertilizer Granulator
DEVICE DETAILS:

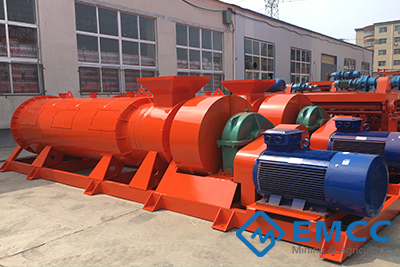

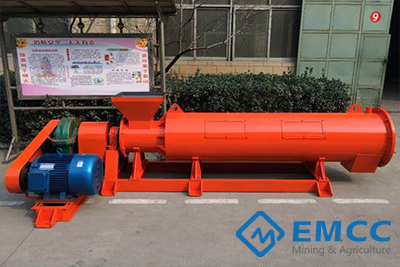

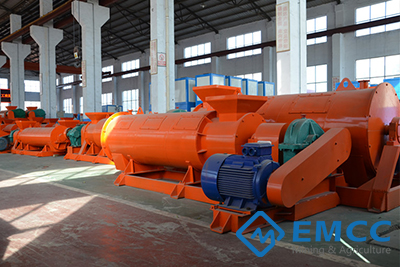

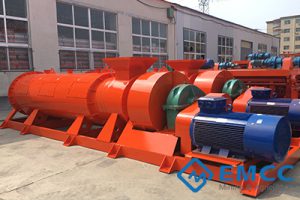

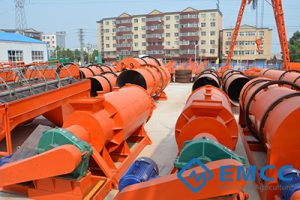

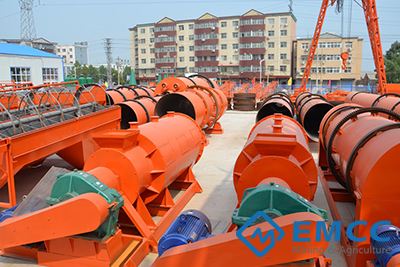

New type organic fertilizer granulator is also called wet granulator or stirring tooth granulator. It is a newly developed granulator used for granulating various kinds of fermented organic materials. The raw materials need not to be dried before granulation, saving energy and production cost. The granules produced by this fertilizer making machine are spherical type, which is easy to apply.
Range of Application :
This fertilizer granulator can be used for a variety of raw materials.
1.It can be applied in Bio Organic Fertilizer Production Line. Raw materials: peat, lignite, organic municipal sludge, and straw.
2.It can be applied in Cake Fertilizer Production Line. Main raw material is soybean cake.
3.It can be applied in Organic Compound Fertilizer Production Line. Raw materials is chicken manure, pig manure, cow dung, and other livestock/poultry waste.
4.It can be applied in Complete Feed, Mixed Feed Production Line. Raw materials are maize, legume, and grass powder.
5.It can be applied in Biological Feed Production Line. Raw material is crop stalks.
TECHNICAL PARAMETERS:
| Model | Feeding size (mesh) | Feeding moisture (%) | Installation Angle (°) | Capacity (t/h) | Power (kw) | Dimension (mm) | |
| JZ-600 | 50 | 20%-40% | 2°-2.5° | 1-1.5t/h | 37 | 4100x1600x1150 | |
| JZ-800 | 50 | 20%-40% | 2°-2.5° | 1.5-2.5t/h | 55 | 4250x1850x1300 | |
| JZ-1000 | 50 | 20%-40% | 2°-2.5° | 2-4t/h | 75 | 4700x2350x1600 | |
| JZ-1200 | 50 | 20%-40% | 2°-2.5° | 4-6t/h | 90 | 4900x2550x1800 | |
| JZ-1500 | 50 | 20%-40% | 2°-2.5° | 6-8t/h | 110 | 5500x2800x2000 | |
ADVANTAGE:
1. Fertilizer granules produced are all spherical shaped, nice appearance and easy to apply.
2. Fertilizer granules produced have rich organic matter content, which can reach 100%, realizing pure organic matter granulation.
3. No binder need to be added during granulation, for the organic matter particles can grow inlaid with each other under certain force.
4. Fermented materials need not to be dried, the moisture content can be 20%-40%.
5. Fertilizer granules produced are solid so that not easy to be moistened.
6. The shell of fertilizer granulator adopts heavy seamless steel pipe, sturdy and durable, never deform. The stable base design ensures a more stable running.
7. High granulation rate which can reach 80%-90%, suitable for various formulations. The compressive strength of granular fertilizer produced is higher than that of disc fertilizer granulator and rotary drum granulator. Large granular rate is lower than 15%. The size and uniformity of granules can be adjusted by the stepless speed regulation function of the machine.
WORK PRINCIPLE:

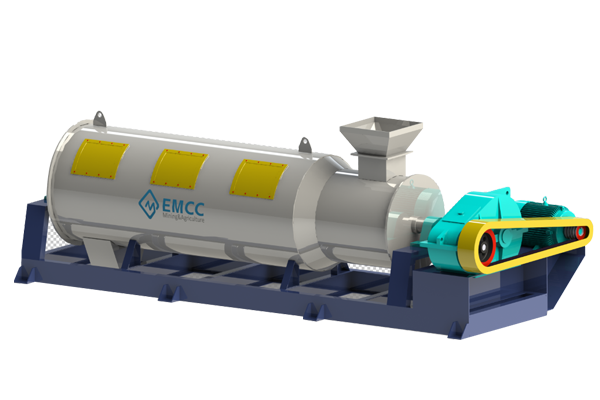

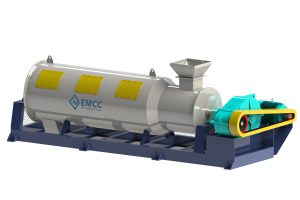

New type organic fertilizer granulator consists of machine body, driving part and granulating rotor. The machine body and driving part are mainly fixed on a machine frame, ensuring the sturdy construction, stable performance and easy installation of the granulator machine.The motor and speed reducer of the driving part drive the rotor to rotate. After the materials enter into the organic fertilizer machine through the feeding inlet, by the high speed rotating mechanical stirring force and aerodynamic force thereof, the materials are mixed, granulated, spherified and densified in the machine, achieving the aim of granulation. The formed granules are pushed out in the other end of the equipment.
Note: The diameter of the produced granules can be controlled by adjusting the quantity of the raw materials and rotating speed of main shaft. The less the raw materials mixed and the higher the rotating speed, the smaller the granulated fertilizer.
