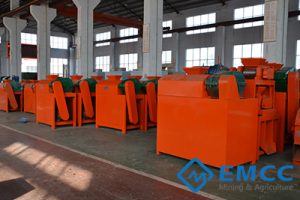

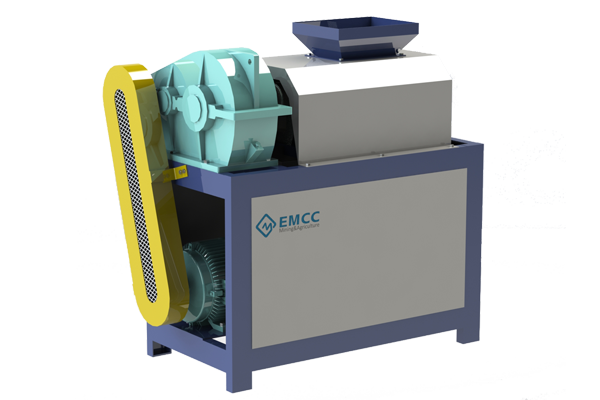

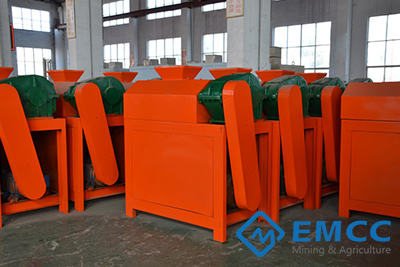

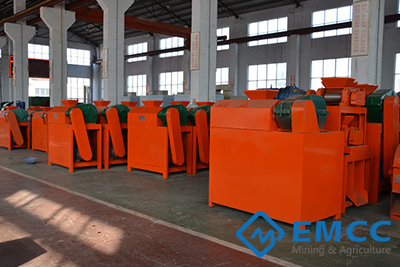

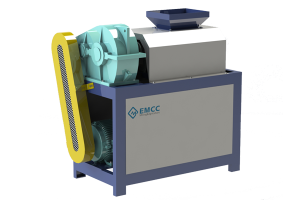

Double Roller Fertilizer Granulator
We offer complete organic or compound fertilizer production line for designs, installation and maintenance with long-term technical support and fast response.
Double Roller Fertilizer Granulator
DEVICE DETAILS:
Double roller fertilizer granulator is a newly developed granulating machine in fertilizer industry. It uses squeezing principle to form fertilizer particles with diameters of 3.5-10mm in one time.It has higher granulating ratio of over 85%. Double roller fertilizer granulator is the most popular granulating methods in no-drying (2%-5% moisture content) fertilizer process at room temperature.Less cost and quick granulating,thus it can bring fertilizer investment a good economic returns.
TECHNICAL PARAMETERS:
| Model | Feeding size (mm) | Material Moisture Content | Output size (mm) | Roller size (mm) | Power (kw) | Dimension (mm) | |
| DZL-1T | ≤0.5 | 2%-5% | 3-10 | Ø150×220mm | 11 | 1450x800x1450 | |
| DZL-1.5T | ≤0.5 | 2%-5% | 3-10 | Ø150×300mm | 22 | 1450x850x1500 | |
| DZL-2T | ≤0.5 | 2%-5% | 3-10 | Ø185×300mm | 30 | 1630x850x1650 | |
| DZL-3T | ≤0.5 | 2%-5% | 3-10 | Ø300×300mm | 37 | 1850x1100x2050 | |
ADVANTAGE:
1.No-drying fertilizer such as 2%-5% moisture content fertilizer granulating process,forming fertilizer particles in one time,little cost.
2.Reliable motor adopted, no three wastes released,stable granulating,simple to maintain.
3.Rational structure and advanced technology,good economic benefits.
4.Wide application to raw materials like compound fertilizer,organic fertilizer,feed,etc. Can be used to process compound fertilizer of various concentrations(including organic fertilizer,inorganic fertilizer,biological fertilizer and magnetic fertilizer)
5.Popular in domestic fertilizer series production such as tombarthite fertilizer,ammonium bicarbonate fertilizer,ammonium persulfate fertilizer,etc.
WORK PRINCIPLE:
The Double roller fertilizer granulator is the representative of extrusion granulator. Dry materials are compressed into hard & dense blocks at a pressure, which is the Extruding Process. Block materials are crushed, screened and granulated later, which is the Granulating Process. The functions of extrusion are to squeeze the air between particles out, and to make the distance between particles near enough to give rise to interaction forces. The particle hardness of roller compaction granulation granules is formed mainly due to attraction between the molecules. Our double roller press machine is continuous extruding granulation of positive-displacement.
