BB FERTILIZER PRODUCTION LINE
EMCC ia a China leading manufacturer of bulk blended bb fertilizer production line, and design it to save compound fertilizer plant cost.
BB FERTILIZER PRODUCTION LINE
China EMCC‘s compound bulk blended/BB fertilizer production line with double roller granulator has advantages on safe operating conditions, high quanlity, low energy consumption and convenient maintenance. It is designed for low cost NPK fertilizer plants. Our clients choosed it to produce quality NPK fertilizer quickly.
BRIEF DESCRIPTION
Manual feeding-automatic batching according to the set formula-automatic conveying-automatic mixing according to the set time-automatic packaging according to the set weight- Manual bag putting -automatic bag sealing and cutting
CHARACTERISTICS
Batching system: Automatic arc gate feeding device, arc gate feeding is two-stage feeding, which can accurately meet the proportion of materials. Static metering hopper metering (static metering hopper metering is a more practical and advanced metering method, batching speed is fast, the measurement accuracy is high.)
Conveying system: adopts bucket skirt belt, stable operation and convenient maintenance.
Mixing system: The latest double shaft gravity free mixer is a mixing device specially developed for BB fertilizer. It reaches the leading level, no damage on the granular material, and mixing more evenly. The special integrated motor reducer drives the double shaft. Compared with gears, chains and other transmission modes, the double reducer runs smoothly, less failure rate and vibration.
Packing system: All stainless steel packaging scales are used, with large packaging capacity, stable operation, and high packaging accuracy up to 2‰.
Control system: The touch screen is easy to operate, and the operating status of the equipment can be viewed in real time. 9 commonly used formulas can be set and of functions such as fault alarm, material interruption shutdown, etc..
QUALITY CONTROL POINTS
The batching part is the key to ensure the content of the product, so the verification work before starting the production line must be rigorously carried out. The automatic mixing part is the element that determines the uniformity of the material. The automatic quantitative packaging part determines weight of the finished product. Therefore, the staff for this part should be familiar with the operation of the meter, carefully observe the display of the meter value, adjust the meter parameters timely, and pay attention to some subtle matters. The factors which cause the reduce of packaging accuracy :such as the accuracy of the calibration scale, the vibration on packaging scale caused by other equipment, the non-uniform force on the sensor. And the contact with the packaging bag manually put will also cause weight deviation, which affect the accuracy of packaging.
THE FOLLOWING LISTS THE MIXING RATIO OF COMMON FERTILIZERS

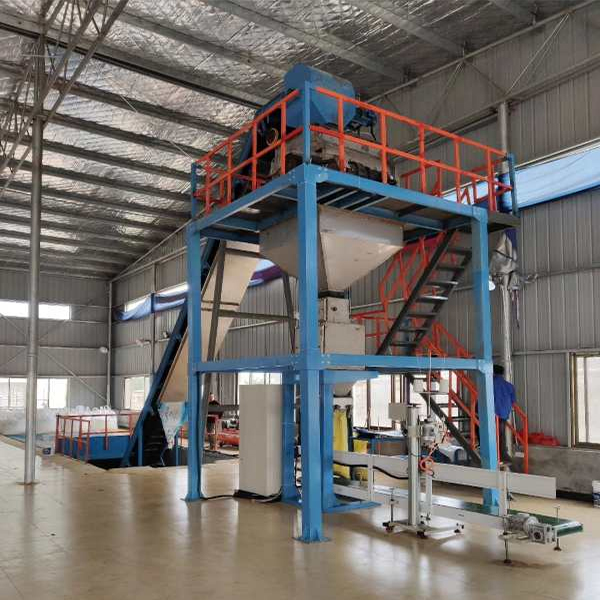

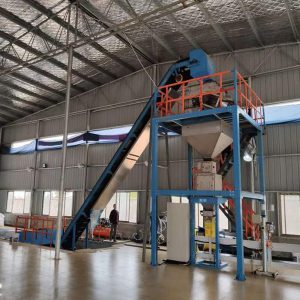

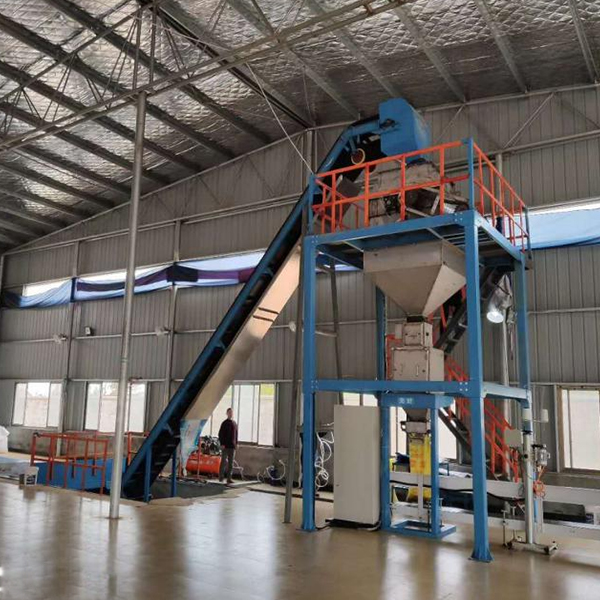

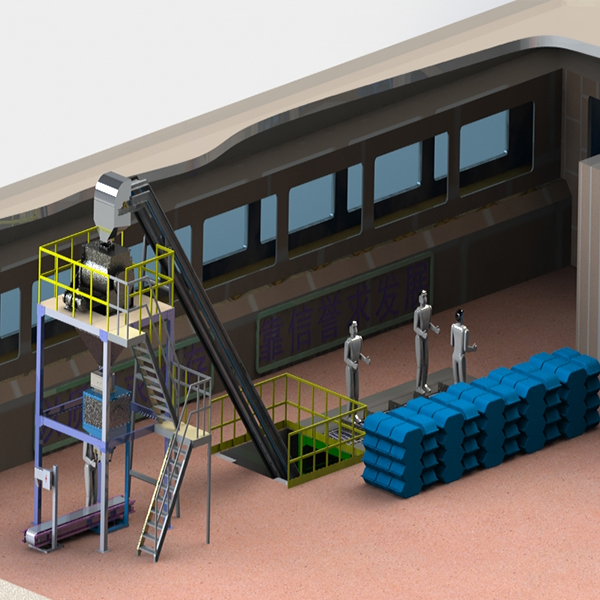

PHOTOS
