Vibrating Feeder
DEVICE DETAILS:

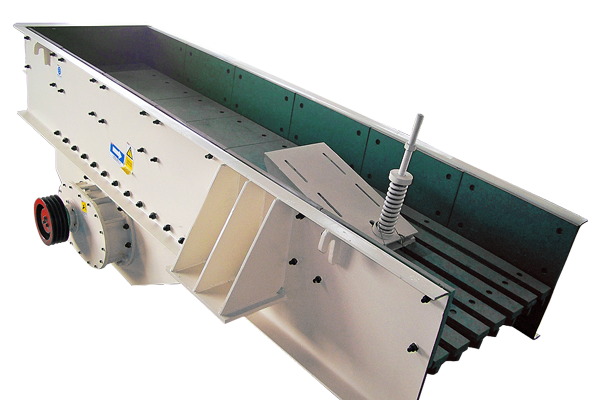

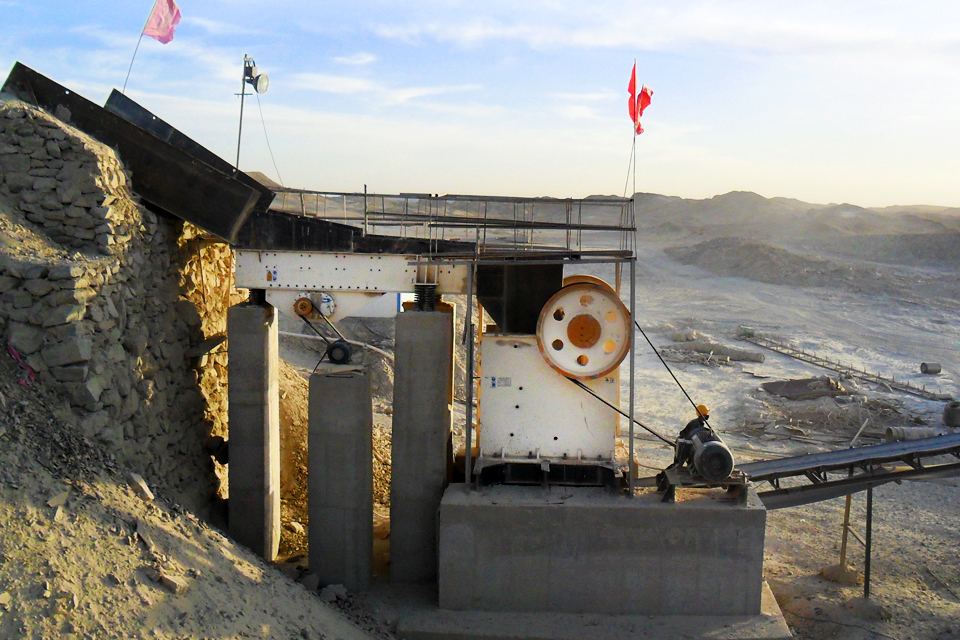

Vibrating feeder is for feeding block material for crushing and screening machine. It is divided into steel plate structure and grate structure two types; steel plate structure vibrating feeder is applied in stone and sand production line, grate structure vibrating feeder is for coarse screening material to make whole system more economical, it’s an essential machine in the crushing and screening line.
GZD Series Vibrating feeer adopts vibration motor as the source of vibration, which has features of simple structure, high capacity, low maintenance rate. It can be widely used in the fields of metallurgy,construction, stone crushing, etc..
While, ZSW Series Vibrating feeder adopts eccentric block as the source of vibration, gear drove by turns which has low vibrating noise, smooth operation, long usage. It can also pre-screen fine raw materials which makes higher effiency. The design of adjustable fence can prevent the materials from blocking in the gap.
TECHNICAL PARAMETERS:
| Model | Maximum feeding size (mm) | Capacity (t/h) | Eccentric shaft speed | power (kw) | Installation angle (°) | Feed trough size(mm) | weight (t) | Dimensions(L×W×H) (mm) |
| GZD-180×80 | 300 | 30-80 | 4 | 2×1.5 | 0-10 | 1800×800 | 0.8 | 1907×964×890 |
| GZD-300×90 | 400 | 40-100 | 4 | 2×2.2 | 0-10 | 3000×900 | 1.5 | 3400×1020×900 |
| ZSW-300×90 | 450 | 50-150 | 6 | 7.5 | 0-10 | 3000×900 | 3.5 | 3080×1650×1180 |
| ZSW-380×96 | 500 | 120-210 | 6 | 11 | 0-10 | 3800×960 | 4.2 | 3880×1724×1180 |
| ZSW-420×110 | 650 | 180-400 | 6 | 15 | 0-10 | 4200×1100 | 4.8 | 4200×1804×1180 |
| ZSW-490×110 | 650 | 250-480 | 6 | 15 | 0-10 | 4900×1100 | 5.3 | 4976×1864×1180 |
| ZSW-490×130 | 800 | 300-550 | 6 | 22 | 0-10 | 4900×1300 | 6.7 | 4976×2064×1180 |
| ZSW-600×130 | 800 | 340-600 | 6 | 30 | 0-10 | 6000×1300 | 7.8 | 6100×2004×1250 |
| ZSW-600×160 | 1050 | 400-800 | 4 | 37 | 0-10 | 6000×1600 | 10.8 | 6400×3085×2395 |
ADVANTAGE:
Grate
The gap between the grate bars is removable as needed, to simplify maintenance and extend the service life.
gear
High strength and high precision gears make the machine work stably
engine
Customers of well-known car brands can choose the Siemens brand
Oil quantity display
The client can check the location of the lubricant
WORK PRINCIPLE:
GZD series vibration feeder adopts vibration motor as the vibration source with simple structure, high capacity and low holding capacity. It can be widely used in metallurgical structure crushed stone and other fields.
Although the source of ZSW series vibration feeder adopts block eccentric vibration gear to bring alternately with low vibration noise, it runs smoothly for long-term use. It can also be pre-screened, which makes it highly efficient. The design of the adjustable fence can prevent materials from blocking high-quality raw materials from the gap.
