Belt Conveyor
DEVICE DETAILS:

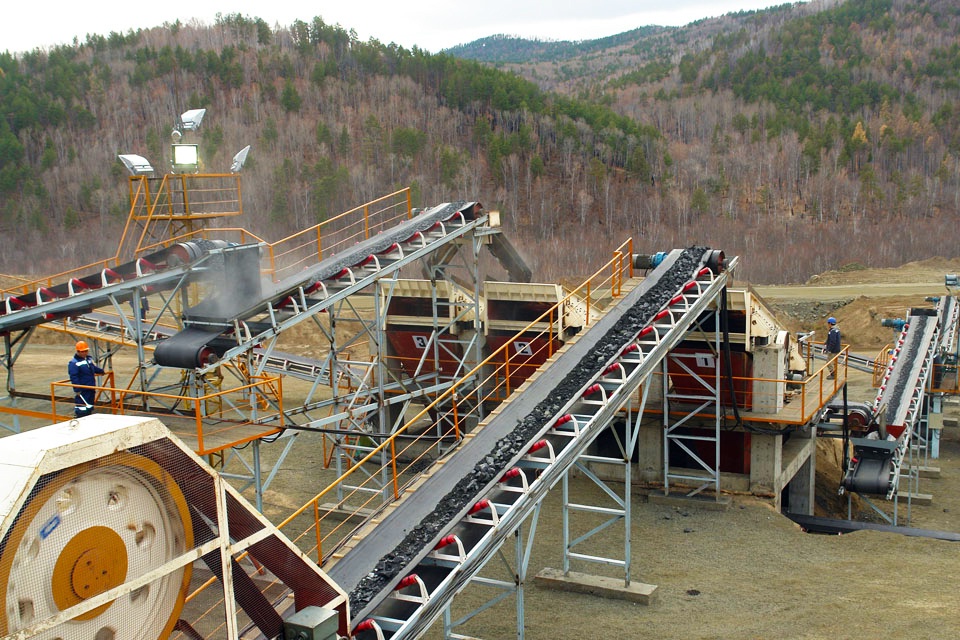

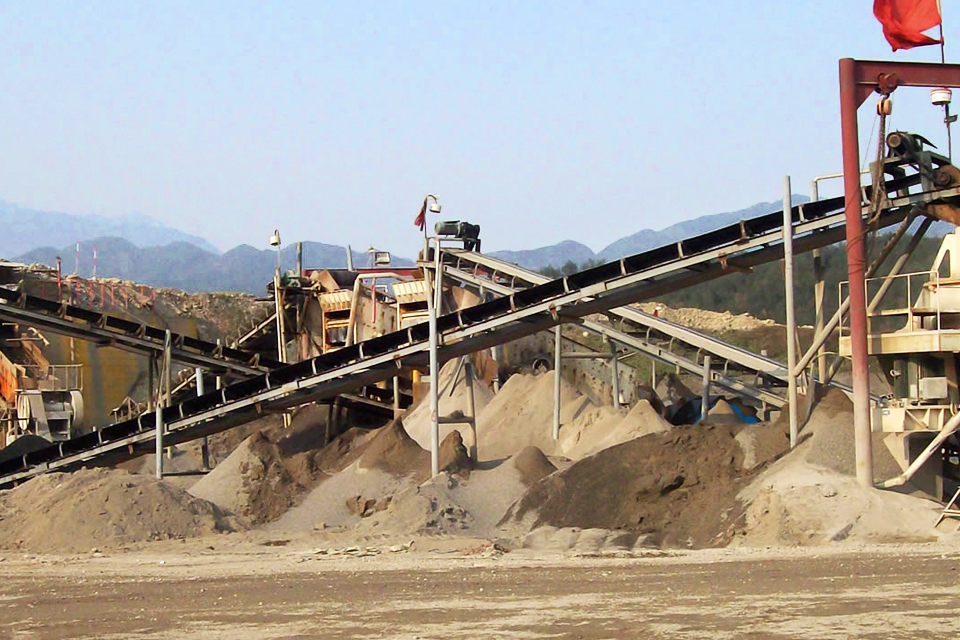

Belt conveyor is a kind of machine that transfers the material continuously. The belt works under the effect of frictional force. It is not only the component to transfer the material, but also the components to transfer the force. EMCC belt conveyor is advanced and simple in structure, easy to maintain. Transfer capacity is more higher, and transfer distance more longer. It is widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. In many situation, it is a very important component of nonstandard machinery.
The belt conveyor is composed of standard parts, advanced and simple in structure, easy to maintain. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. According to different transferring equipment, the transfer system can be one independently or multi-conveyors or combined with other transfer equipments. It can be installed horizontally or aslope to meet the needs of different transfer lines. The conveyor can be operated in the circumstance temperature range from -20℃ to +40℃. Temperature of transferred material by this belt conveyor should be lower than 50℃.
TECHNICAL PARAMETERS:
| Belt Width(mm) | Belt Length(m)/Power(kw) | Belt Speed(m/s) | Capacity(t/h) | ||
| 400 | ≤12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2 | 40-80 |
| 500 | ≤12/3 | 12-20/4 | 20-30/5.5 | 0.8-2 | 78-191 |
| 650 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2 | 131-323 |
| 800 | ≤10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2 | 278-546 |
| 1000 | ≤10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2 | 435-853 |
| 1200 | ≤10/7.5 | 12-20/11 | 20-25/15 | 1.0-2 | 655-1284 |
| Note:actual power will be decided by the complete set | |||||
ADVANTAGE:
1.Compact design, suitable for grain, powder or fertilizer products.
2.Grooves used to fasten attachment parts, such as stands, side rails or proximity switches
3. Profile design ensures a torsion-resistant structure with good carrying characteristics
4. Crowned pivot rollers and idler rollers allow center belt run and facilitate belt adjustment
5. Optional rubberized drive rollers ensure optimal transmission of torque
WORK PRINCIPLE:

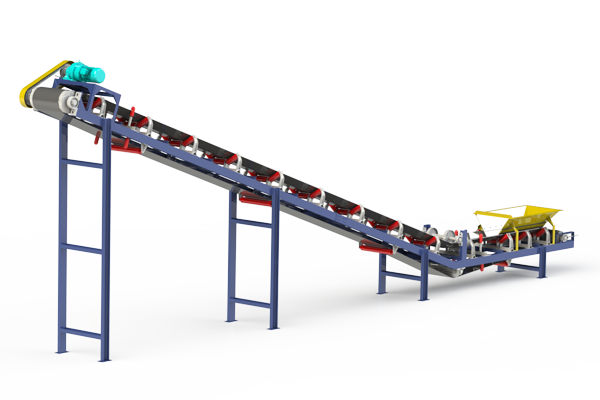

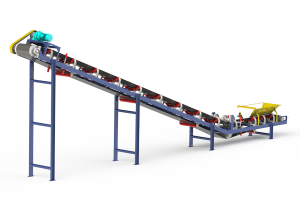

Belt conveyor is composed of rollers and closed conveyor belt. There are two rollers one is for driving conveyor rotating another one is for changing the motor direction of conveyor. Head roller is drived by motor conveyor is draged by force of friction which is generated from head roller and conveyor. Head roller is often set in the discharging end to increase traction for a better dragging. Material is fed from feed end and falls on the rotating conveyor belt and discharged by conveyor delivery end.
